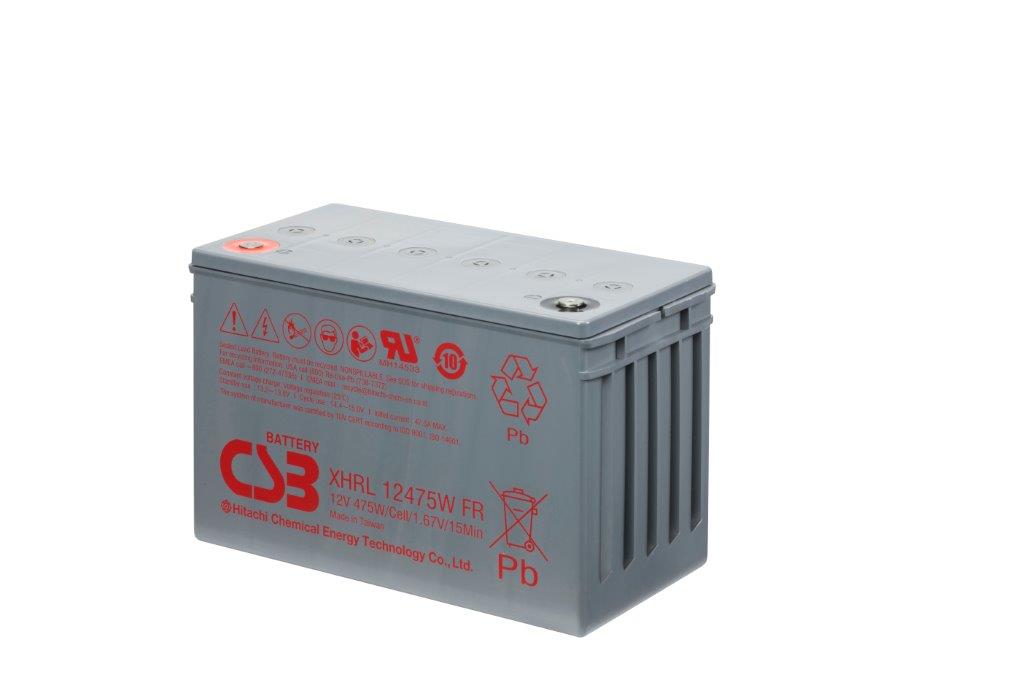

台湾CSB蓄电池xhrl12475w电池是专为高倍率放电的应用。待机使用寿命可达10年。
| 规格书 |
| 局数 | 6 |
| 电压值 | 12 V |
| 安培数 | 475.0W@ 15 Minute-Rate to 1.67V Per Cell @ 25°C(77°F) |
| 重量(kg) | Approx. 36.2 kg (79.78 lbs) |
| 最大放电电流5秒(A) | 800A (5sec) |
| 内阻(mΩ) | Approx. 2.30 mΩ |
| 温度工作范围 |
Discharge：-15℃~50℃ (5°F~122°F) Charge：-15℃~40℃ (5°F~104°F) Storage：-15℃~40℃ (5°F~104°F) |
| 一般使用温度工作范围 | 25°C±3°C (77°F±5°F) |
| 浮充电压 | 13.5 to 13.8 VDC/Unit Average at 25°C(77°F) |
| 建议充电最大电流 | 47.5 A |
| 均充电压 | 14.4 to 15.0 VDC/Unit Average at 25°C(77°F) |
| 自放电 | Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉); |
| 端子 | I2 (1/4") thread lead alloy terminal to accept M6 (1/4") bolt |
| 电槽组材质 | Flame Retardant Polypropylene (UL 94-V0) |
